INCH-POUND
MIL-DTL-14631/11C
11 April 2000
SUPERSEDING
MIL-DTL-14631/11B
21 March 1997
DETAIL SPECIFICATION SHEET

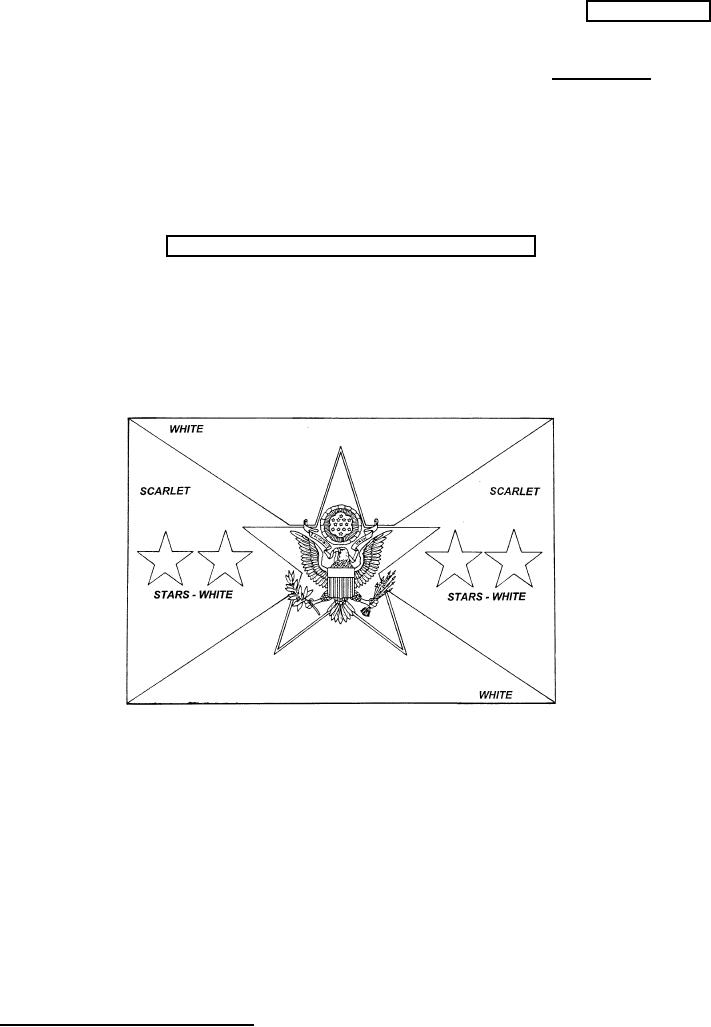

PLATE, AUTOMOBILE, INDIVIDUAL, VICE CHIEF OF STAFF, ARMY
Inactive for new design after 8 January 1999.
This specification is approved for use by all Departments and Agencies
of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and the issue of MIL-DTL-14631 listed in that issue of the Department of
Defense Index of Specifications and Standards (DoDISS) specified in the solicitation.
MATERIAL: Aluminum
DIMENSIONS:
BASE:
HEIGHT (overall): 6 inches ± 1/16 inch
WIDTH: 9 inches ± 1/16 inch
THICKNESS: 0.064 inch ± 0.003 inch
STAR DEVICE WITH COAT OF ARMS (star tip to star tip): 4-3/16 inches
STARS (circumscribed diameter): 1-1/4 inches
AMSC N/A
1 of 2
FSC 8345
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
